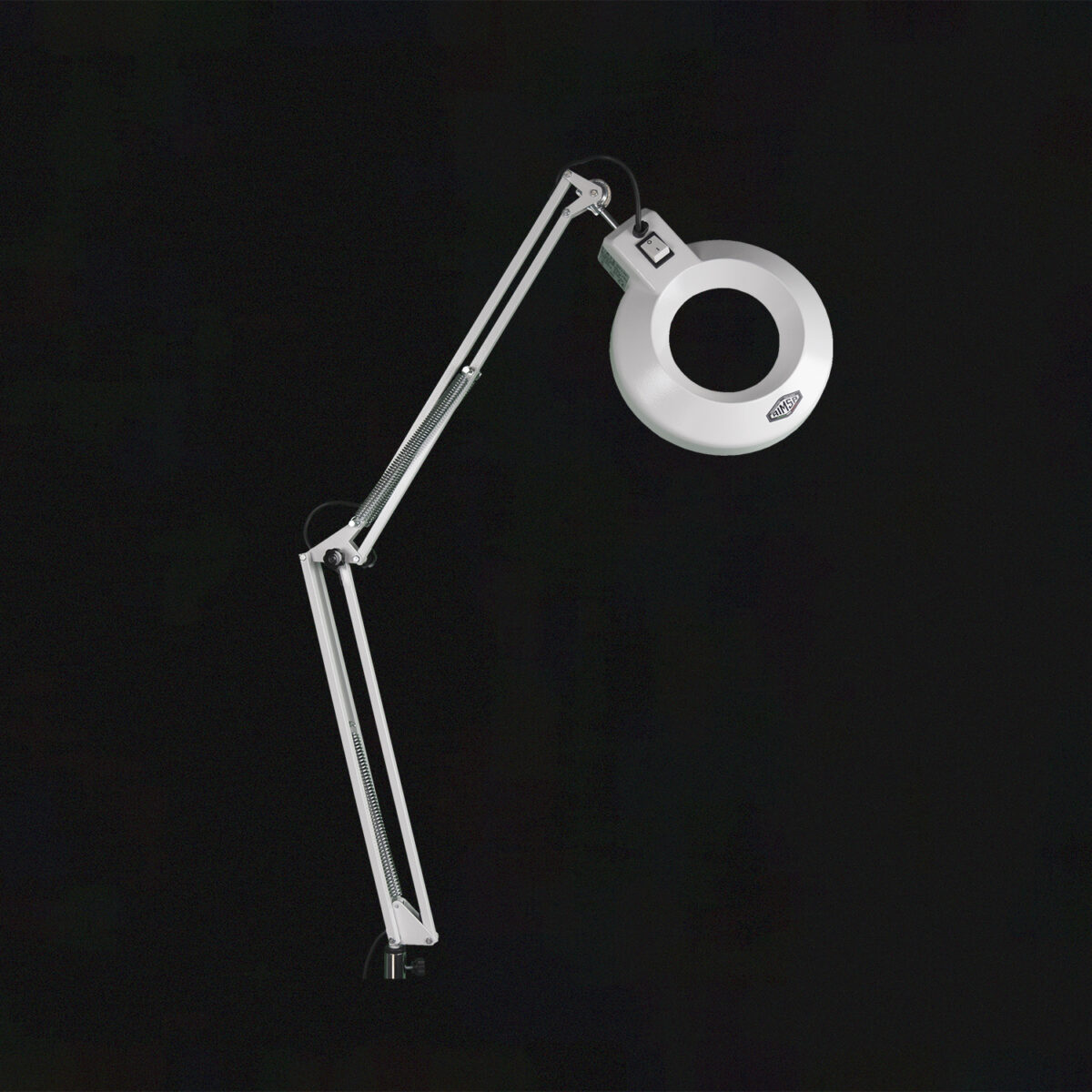

188 Led

Particularly suitable for precision work in different areas. S11 Clamp included.

Main features:
dimmer
polished optical glass
plexiglass accurately placed inside the reflector to protect the leds
pyrex glass

3D_Model
Technical_Catalog

More features:
pantograph with springs
metal structure
anti-corrosion paint
resistant cable

Description

Power 9,5 W
Supply 220-240 V
Illuminance at 50cm 1700 lux
Diopters 3 (175%)
Color temperature 6.500 K
Reflector’s diameter 230 mm
Product’s life 50.000 hours
Structure Pantograph
IP Protection IP20
IK Protection IK03
Class I
Cable

H03 VVF 3X0.75 1,75 m with 2P + T 10 A plug

Fixing s/11 s/12 s/15 Clamp
Colours Hammered Grey (GM), Hammered White (BM)
Order Code without Dimmer 188-LEDGM, 188-LEDBM
Order Code with Dimmer 188D-LEDGM, 188D-LEDBM

The 188LED model is particularly suitable for industrial use for lighting during precision work such as quality control, control of printed circuit boards, and for mould making; in the graphic field for checking prints and lithographs and in the private sector for modelling, sewing, philately or reading. The product is suitable in the medical field for minor surgery, eye surgery, podiatry, dermatology, and in the beauty treatment sector, in spas or beauty centres.

The lens used on the C Series models are made of polished optical glass in order to avoid visual fatigue, migraine headaches, distortions or misrepresentation of the colours of the object observed which would occur in the case of plastic lenses or other types of glass lenses. The lens has 3 dioptres, thus offering 175% more magnification than the original. The products of the C-Series are also available with intensity control function.

Additional information

Weight 4 kg

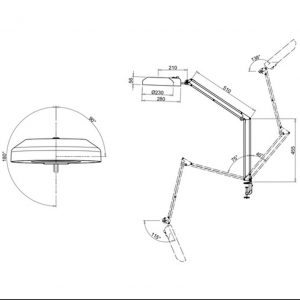

Dimensions 61 × 61 × 8 cm
Colors

Hammered grey, Hammered white

Dimmer

With dimmer, Without Dimmer
