Fluorescent PMMA 707 mm
Cylindrical Fluorescent PMMA. Available in 24V, 115V or 230V.
Order code: TFC36-24 24V, TFC36-230 230V
Description
| 24 V – TFC36-24 | 230 V – TFC36-230 | |
| Power | 36 W | 36 W |
| Color temperature | 6500 K | 6500 K |
| Lumen | 2900 lm | 2900 lm |
| Supply | 24 V 2G11 | 230 V 2G11 |
| Tube Ø | 70 mm | 70 mm |
| Length | 707 mm | 707 mm |
| Body | CYLINDRICAL IN PMMA | CYLINDRICAL IN PMMA |
| IP Protection | IP67 | IP67 |
| IK Protection | IK07 | IK07 |
| Class | III | I |
| Cable | None | None |

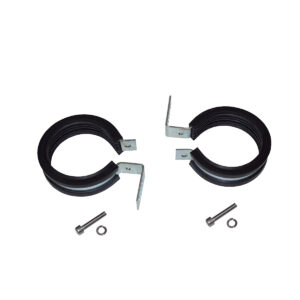

| Fixing | 2 LOCKING BRACKETS | 2 LOCKING BRACKETS |
| order code | TFC36-24 | TFC36-230 |
The cylindrical body, in scratchresistant PMMA (polymethyl methacrylate), dia. 70 mm, contains a fluorescent lamp with two end caps. By tightening the three screws on the side caps, an O-ring is compressed and adheres perfectly to the inner wall of the cylinder.
This closure guarantees a watertight seal of the IP 67 type. Watertight ceiling lamps are particularly suitable for lighting up machine tool work areas, where well-layered linear lighting of both the spindle and the work area is required. The machine tool operator always has excellent lighting even in the presence of water jets and coolant emulsions.
Additional information
| Alimentazione | 115 V, 230 V, 24 V |
|---|
