050-LED

The model is suitable for use on machine tools – the arm structure and its flexibility allow maximum freedom of movement.

Features:

  • Metal structure
  • Flexible arm
  • Printed circuit boards
  • Anti-corrosion paint
  • Pyrex glass



Technical sheet – 050 Led

OBJ – 3D Model – 050-LED

USDZ – 3D Model – 050-LED

Description



Code 230V – with Transformer 24V – Low Voltage
Power 8 W 8 W
Supply 110-240 V 12-24 V ca/cc
Illuminance at 50 cm 30.000 Lux 30.000 Lux
Color temperature 5.000 K 5.000 K
Reflector’s diameter 90 mm 90 mm
Diameter of the light field 190 mm 190 mm
Product’s life 50.000 hours 50.000 hours
Colour rendering index (CRI) 87 Ra 87 Ra
Luminous flux 550 lm 550 lm
Structure Reflector + flexible arm + 1 joint Reflector + flexible arm + 1 joint
IP Protection IP 66 IP 66
IK Protection IK 05 IK 05
Class III III
Cabling AWG 2×21 AWG 2×21
Power supply Plug-top transformer; interchangeable plugs AWG 2X21
Fixing 4 screws 4 screws
Colours Hammered Grey Hammered Grey
Order Code 050-LED-TR 050-LED-BT

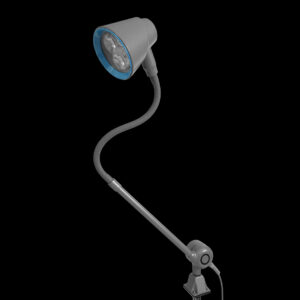

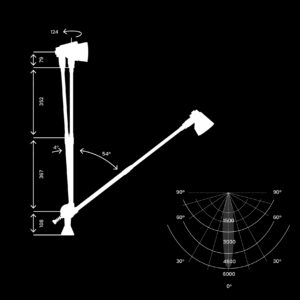

The 050-LED model feature the G-Series reflector on a 350 mm flexible arm which allows movement in all directions, ensuring stability even in the event of shocks or vibrations. The flexible arm is connected to a joint which offers an additional movement of 60°.

The models are suitable for use on machine tools – the arm structure and its flexibility allow maximum freedom of movement.

Additional information

Alimentazione

230 V, 230V – TR, 24 V, 24V – BT
