G-LED

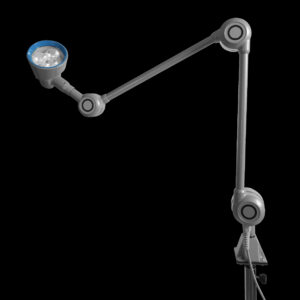

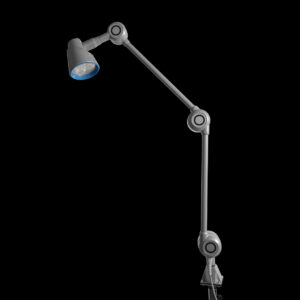

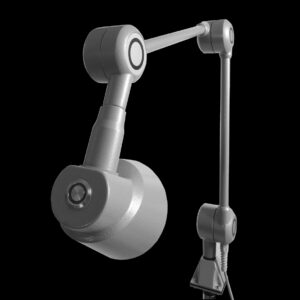

The G-LED model features a circular reflector and a three-joint arm measuring 1012 mm, significantly longer than all other lamps in the Golia Series. G-LED is recommended in situations where the operator is working on large pieces or where a wide range of movement of the light source is required.
Description
Features
The G-LED model of the Golia Series is characterized by a circular reflector – typical of this series – and a 3-jointed arm. This type of arm provides great stability to the lamp and to the direction of the light beam. The arm is longer than that of the other models in the series. For this reason, the G-LED is recommended where a wide-ranging arm movement is necessary.
Fixing
The fixing of this model is done by means of four screws at the lamp base.
Power supply
the G-LED model is available in two versions. The TR model (regular voltage with transformer) can be powered at 110-240 V with a C-type plug (schuko); the BT model (low voltage) can be powered at 12-24 V without any plugs, as the cables need to be connected directly to the machine or to the electronic panel.
Recommendations for use
The G-LED model is recommended on workbenches, for CNC machines and in the mechanical sector, where the operator has to work with large workpieces.
See the data sheet for more information on the model.
TECHNICAL DATA SHEET
| Code | 230V – with Transformer | 24V – Low Voltage |
| Power | 8 W | 8 W |
| Supply | 110-240 V | 12-24 V ca/cc |
| Illuminance at 50 cm | 30.o00 lux | 30.000 lux |
| Colour temperature | 5.000 K | 5.000 K |
| Reflector’s diameter | 90 mm | 90 mm |
| Diameter of the light field | 190 mm | 190 mm |
| Product’s life | 50.000 hours | 50.000 hours |
| Colour rendering index (CRI) | 87 Ra | 87 Ra |
| Luminous flux | 550 lm | 550 lm |
| Structure | Reflector + 3 joints | Reflector + 3 joints |
| IP Protection | IP 66 | IP 66 |
| IK Protection | IK 05 | IK 05 |
| Class | III | III |
| Cabling | AWG 2×21 | AWG 2×21 |
| Power supply | Plug-top transformer; interchangeable plugs | AWG 2X21 |
| Fixing | 4 screws | 4 screws |
| Colour | Hammered Grey | Hammered Grey |
| Order Code | G-LED-TR | G-LED-BT |

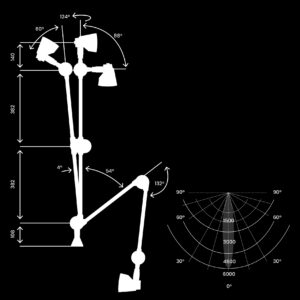

The G-LED model has a 3-joint arm of considerable length (1012 mm) which allows it to be used in circumstances where the operator is engaged in machining large parts or where ample-range movement of the light source is required.
Features:
- Metal structure
- 3-joint arm
- Printed circuit boards
- Anti-corrosion paint
- Pyrex glass
DOWNLOAD THE Technical sheet – G Led
See the G-LED in your environment: download our 3D models!
OBJ – 3D Model – G-LED
USDZ – 3D Model – G-LED-BT
