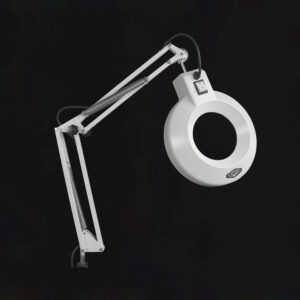

198Led – previous model

This model is purposely designed to be used on desks. Despite the limited extension of the pantograph arm its stability is guaranteed by ad-hoc engineered springs. S11 Clamp included.

Main features:
polished optical glass
plexiglass accurately placed inside the reflector to protect the leds
pyrex glass

3D_Model
Technical_Catalog

More features:

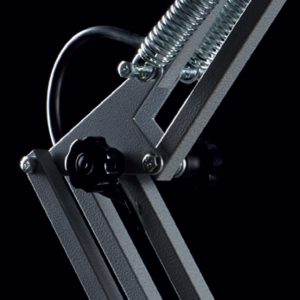

pantograph with springs
metal structure
anti-corrosion paint
resistant cable

Description



Power 9,5 W
Supply 220-240 V
Illuminance at 50cm 1.700
Diopters 3 (175%)
Color temperature 6.500 K
Reflector’s diameter 230 mm
Structure

Pantograph

IP Protection IP20
IK Protection IK03
Class I
Cable

H3 VVF 3X0.75 1,75 m with 2P + T 10 A plug

Fixing

S11/S15/S12 clamp, BASE PESANTE

Colours Hammered White (BM),  Hammered Grey (GM)
Order Code without Dimmer 198-LEDBM, 198-LEDGM
Energy Efficiency Index (EEI) A++


The model can be fixed with clamps or with a desk base.

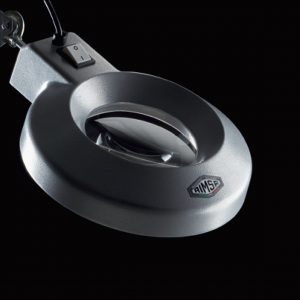

The lens used on the C Series models are made of polished optical glass in order to avoid visual fatigue, migraine headaches, distortions or misrepresentation of the colours of the object observed which would occur in the case of plastic lenses or other types of glass lenses. The lens has 3 dioptres, thus offering 175% more magnification than the original. The products of the C-Series are also available with intensity control function.

Additional information

Weight 3.6 kg
Dimensions 61 × 61 × 8 cm
Colors

Hammered grey, Hammered white

Dimmer

With dimmer
