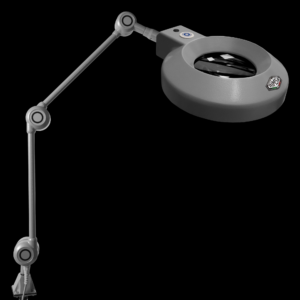

L88-LED
A polished optical glass magnifying lens and articulated arm make the L88-LED model a reliable choice for the workbenches of craftsmen and professionals. Thanks to the articulated arm, the RIMSA L88-LED lamp can maintain a fixed position even in the presence of strong vibrations or stress. The solid structure makes the product particularly suitable for industrial environments.
Description
Features

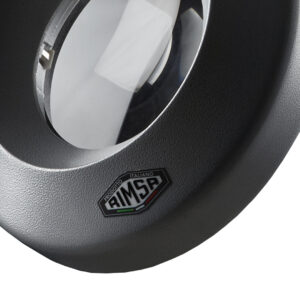

The RIMSA model L88-LED lamp of the Ciclope Series features white LEDs. Like for the other LED lights of the series, the lens is made of polished optical glass in order to avoid visual fatigue, headaches, distortions or incorrect colour reproduction of the observed object that would occur with a plastic lens or certain types of glass. A 3-diopter glass lens assures a 75% magnification power.
From a constructional point of view, the professional L88-LED lamp is characterized by great solidity in its every element: the structure is made of metal, the lens of Pyrex glass, the paintwork is corrosion-resistant. The LEDs are protected thanks to the Plexiglas placed carefully inside the reflector. The arm is hinged. Two movements are required to position it: one to adjust the position of the arm and the other to adjust the position of the reflector accordingly.
Power supply
The 188-LED lamp is powered via AWG 2×21 cable and C-type plugs (schuko) or, on request, G-type plugs (UK).
Lighting
The LEDs used on this lamp guarantee 60,000 hours of operation. They also offer color temperature of 4,000 K. Thanks to the touch button, the light intensity can be dimmed and adjusted from 5 to 100%.
Colours
The available colours are classic hammered grey or hammered white. The paints chosen by RIMSA are anti-corrosion, thus guaranteeing a perfect and impeccable appearance at all times.
Recommendations for use
The lighting characteristics of this series, in combination with the lens with which they are equipped and the articulated arm capable of guaranteeing incredible stability, make the L88-LED lamp one of the ideal lamps for working environments where vibrations or high stresses may occur. The solid and resistant structure also makes it perfect for industrial applications.
See the data sheet for more information on this model.
| Power | 13.7 W |
| Supply | 110-240 V |
| Illuminance at 50cm | 2250 lux |
| Light Intensity Adjustment (Dimmer included) | 5% – 100% |
| Diopters / magnification power | 3 / 75% |
| Color temperature | 4.000 K |
| Diameter of the light field | 230 mm |
| Lighting reflector | 700 mm |
| Life product | 50,000 hours |
| Colour rendering index (CRI) | 94 Ra |
| Luminous flux | 2200 lm |
| Movement | Arm with joints |
| IP Protection | IP20 |
| IK Protection | IK03 |
| Class | III |
| Cable | Plug-top transformer; interchangeable plugs |
| Fixing | S11 / S12 / S15 Clamp / RL |
| Colours | Hammered Grey (GM), Hammered White (BM) |
| Order Code | L88-LED-GM, L88-LED-BM |
The special arm available on the L88-LED model allows for stability under strong vibrations. Because of its sturdiness, the product appears to be a very good companion in the industrial environment.
Main features:
- S11 Clamp included
- Dimmer
- Polished optical glass
- Plexiglass accurately placed inside the reflector to protect the leds
- Pyrex glass
- Pantograph with springs
- Metal structure
- Anti-corrosion paint
- Resistant cable
DOWNLOAD THE L88-LED Technical sheet
Application areas
- Selection Required: Select product options above before making new offer.
- Error: There was an error sending your offer, please try again. If this problem persists, please contact us.
Additional information
| Colors | Hammered grey, Hammered white |
|---|
